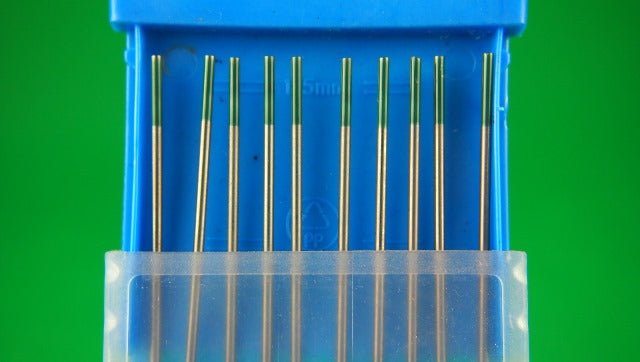

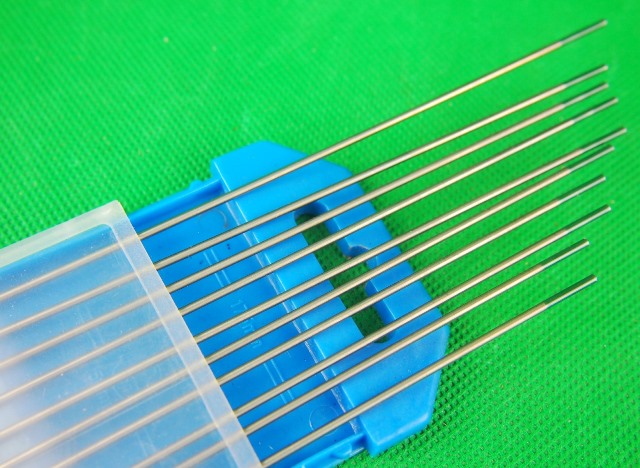

1.6mm 99.5% PURE Tungsten
WP Green Tip
PURE Tungsten Tig Electrode 1.6mm x 175mm
Pure tungsten electrodes (AWS classification EWP) contain 99.50 percent tungsten,
have the highest consumption rate of all electrodes, and typically are less expensive
than their alloyed counterparts.
These electrodes form a clean, ball tip when heated and provide great arc stability for AC welding with a balanced wave.
Pure tungsten also provides good arc stability for
AC sine wave welding, especially on aluminum and magnesium.
It is not typically used for DC welding because it does not
provide the strong arc starts associated with thoriated or ceriated electrodes.
Source The Fabricator.com
Images shown are for display purpose only
