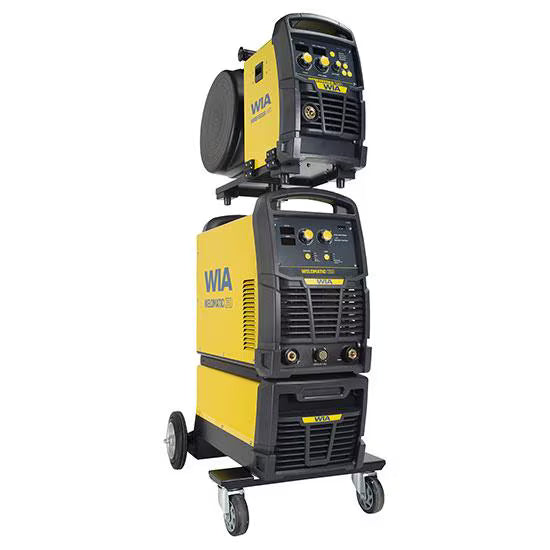

WIA Weldmatic 350 Arc Welding Multi Process CP144-1
Featuring Digital Volt and Amp meters, the 350 allows for easy and precise set up by retaining last weld information. Perfect for a workshop it comes packaged with a separate wire feeder for extra flexibility. Built for tough Australian conditions, and manufactured with 3 years warranty, the Weldmatic 350 offers reliability and performance that’s second to none.
Key Features
Powerful, robust and Built to perform
The Weldmatic 350 offers optimal weld characteristics to provide the highest quality results.
Separate Wire Feeder

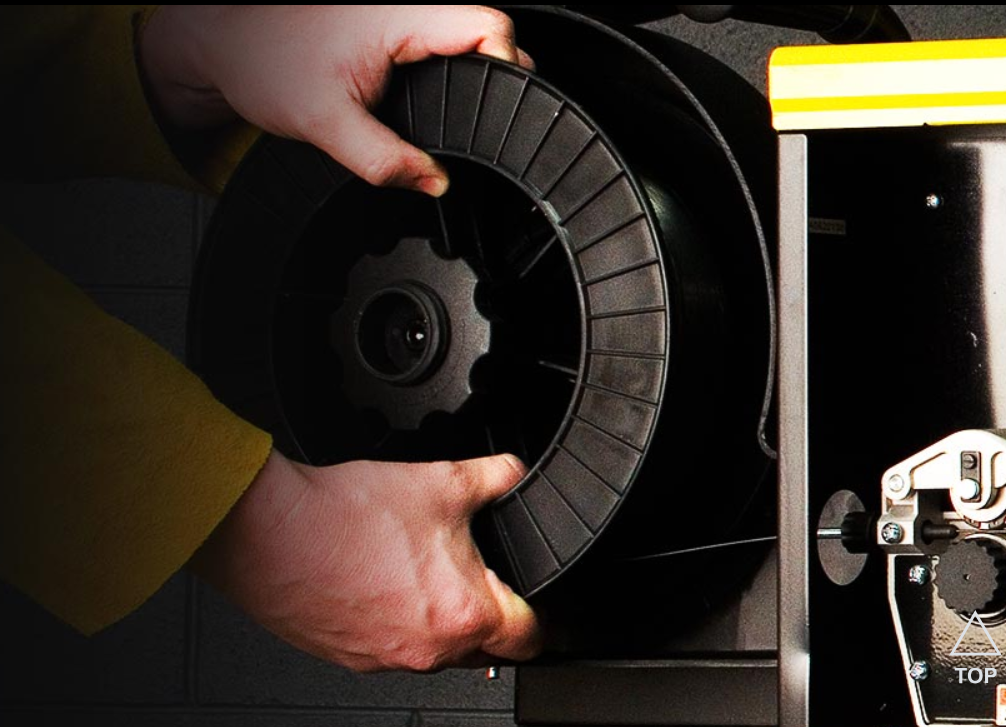

Takes 5kg and 15kg spools. The Weldmatic 350 suits both gas shielded and gasless wires. A separate wire feeder provides extra maneuverability around the workshop for spaces that won't allow machine access. Perfect for welding at heights or small spaces.

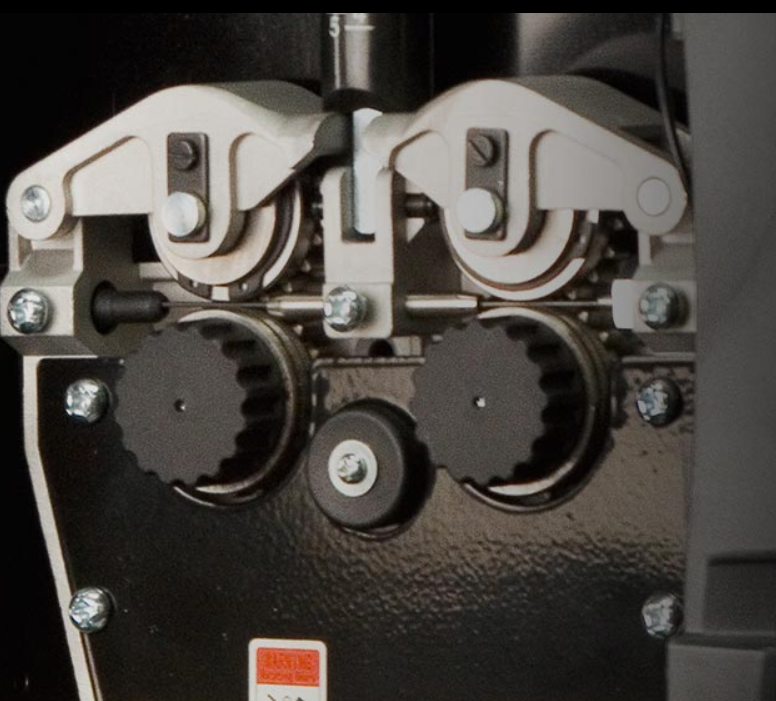

Heavy Duty Four Geared Wire Drive
With large and strong gears and ball bearings for extra reliability and performance.
Burnback
Controls how far the wire burns back to the tip on completion of the welding operation.
Machine Specification
Primary Voltage - 380/415 VAC - 50/60Hz
Rated Primary Current - 19.4 Amps
Max Primary Current - 25 Amps
Recommended Generator Power - 25 kVa
Supply Plug - 32 Amp
Weldable Materials: Steel, Stainless Steel, Aluminium
MIG Specification
Output Range - 30A/15.5V-350A/31.5V
Rated Output @ 40°C (10min) - 350A/31.5V @ 60%, - 271A/27.6V @ 100%
Wire Size Range - 0.6/0.8/0.9/1.2mm
Material Thickness Range - Welds up to 12mm+ steel plate, single pass
TIG Specification
Current Range - 15A/10.6V-350A/24V
Rated Output @ 40°C (10min) - 350A/24V @ 60% -271A/20.8V @ 100%
Package Includes
Euro Gun Cable
3.6m with Bernard Centerfire 0.9mm Tip
Work Lead 10m
Interconnecting Leads 10m
Industrial Twist Lock Electrode Holder 3m
Gas Regulator
Drive Rollers
0.9/1.2mm V Groove & 0.9/1.2mm Knurled
W67 4 Roll Drive Wire Feeder
