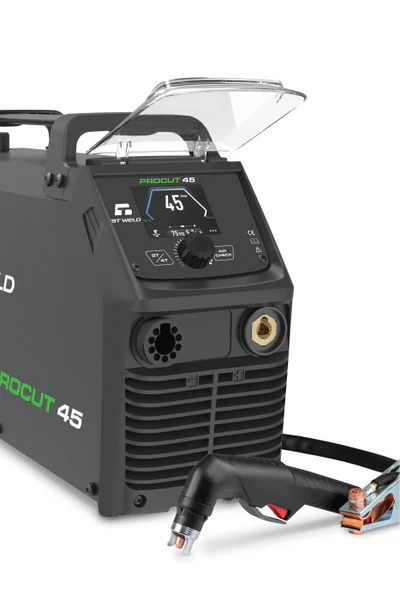

The BT Weld PROCUT 45 is a powerful and compact 240V plasma cutter, designed for precise and clean cuts on a variety of metals.

With 45A output, it delivers high-performance cutting for mild steel, stainless steel, aluminium, and more, making it an ideal choice for workshops, fabricators, and trade professionals.

Model Number: 655045

FEATURES
• 45A Output, 15A Plug
• 2.8" Colour LCD Screen
• 16mm Clean Cut
• 25mm Sever Cut
• Plasma Torch 4Mt
• PSI & Bar Pressure Indicator
• Pilot Arc Start
• Built-in Air Regulator
• PFC
Duty Cycle
40% @ 45A
Generator
8 Kva
Plate Thickness
Max. 16mm
Material - Mild Steel    - Stainless Steel - Carbon Steel - Aluminium - Copper
3 YEAR LIMITED WARRANTY

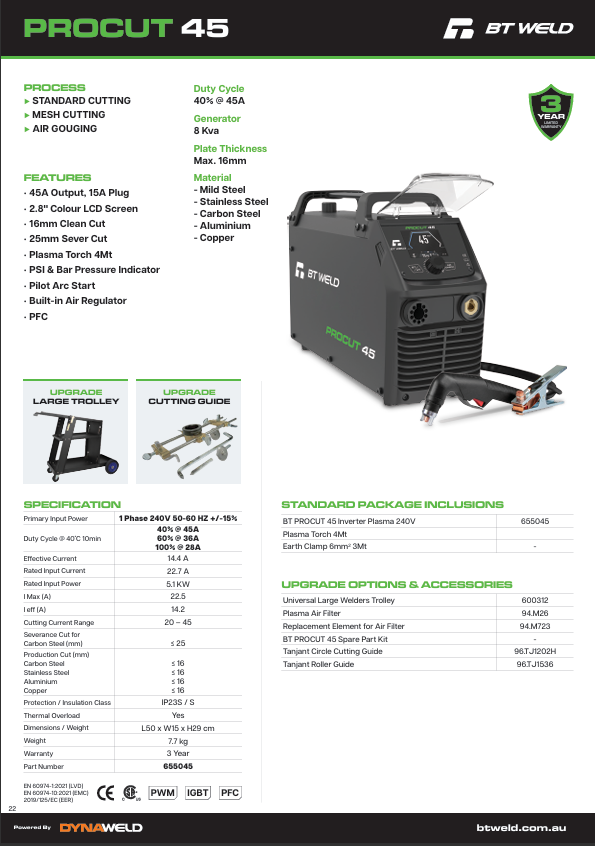

SPECIFICATION
Primary Input Power 1 Phase 240V 50-60 HZ +/-15%
Duty Cycle @ 40˚C 10min
40% @ 45A
60% @ 36A
100% @ 28A
Effective Current 14.4 A
Rated Input Current 22.7 A
Rated Input Power 5.1 KW
I Max (A) 22.5
I eff (A) 14.2
Cutting Current Range 20 – 45
Severance Cut for
Carbon Steel (mm) ≤ 25
Production Cut (mm)
Carbon Steel
Stainless Steel
Aluminium
Copper
≤ 16
≤ 16
≤ 16
≤ 16
Protection / Insulation Class IP23S / S
Thermal Overload Yes
Dimensions / Weight L50 x W15 x H29 cm
Weight 7.7 kg
Warranty 3 Year
Part Number 655045
