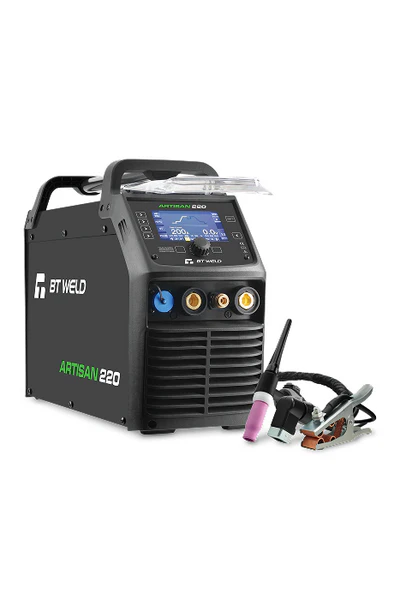

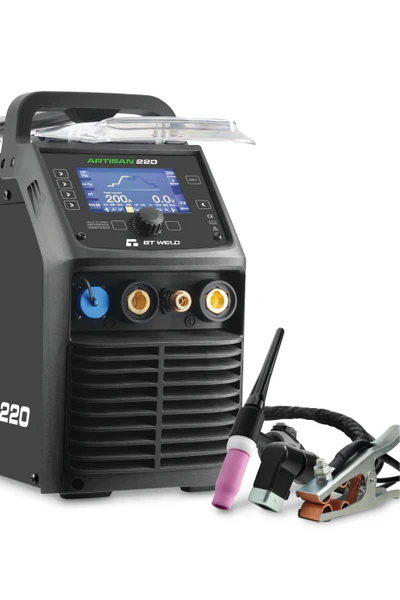

BT Weld ARTISAN 220 AC/DC 240V

The BT Weld ARTISAN 220 AC/DC 240V is a high-performance welding machine designed for precision and versatility. Suitable for both AC and DC welding applications, this welder is perfect for professionals working with various metals, including aluminium, stainless steel, and mild steel.

 FEATURES
 • 200A Output, 15A plug
 • HF/LIFT TIG AC/DC Welder
 • 4.3" Colour LCD Screen
 • Adjustable Pulse
 • AC/DC Waveforms
 • 2T/4T Trigger Latching
 • Weld Parameter Storage
 • Foot Control Ready
 • PFC

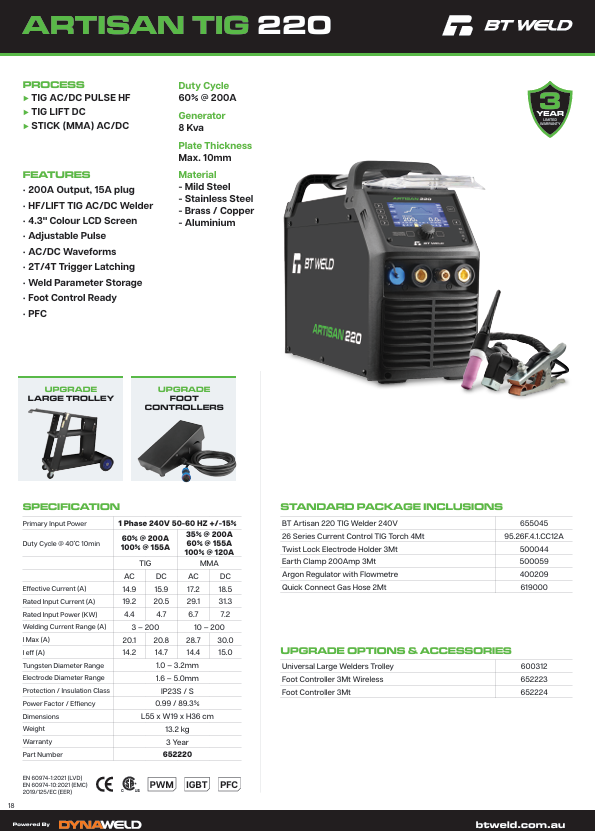

 SPECIFICATION
 Primary Input Power 1 Phase 240V 50-60 HZ +/-15%
 Duty Cycle @ 40˚C 10min 60% @ 200A
 100% @ 155A
 35% @ 200A
60% @ 155A
 100% @ 120A
 TIG MMA
 AC DC AC DC
 Effective Current (A) 14.9 15.9 17.2 18.5
 Rated Input Current (A) 19.2 20.5 29.1 31.3
 Rated Input Power (KW) 4.4 4.7 6.7 7.2
 Welding Current Range (A) 3 – 200 10 – 200
 I Max (A) 20.1 20.8 28.7 30.0
 I eff (A) 14.2 14.7 14.4 15.0
 Tungsten Diameter Range 1.0 – 3.2mm
 Electrode Diameter Range 1.6 – 5.0mm
 Protection / Insulation Class IP23S / S
 Power Factor / Efficiently 0.99 / 89.3%
 Dimensions L55 x W19 x H36 cm
 Weight 13.2 kg
 Warranty 3 Year
 Part Number 652220
